Staircon Professional – Efficient processing and material optimisation

Work preparation with the push of a button

Efficient and well-coordinated work preparation for manufacturers using full-scale print-outs. In combination with the add-on module Export 2D DXF, Staircon Professional is also used by CNC manufacturers using general CAM software.

The stair details are processed into production data with material optimisation and/or printed to plotter as full size drawings. They can also be printed as scaled production drawings and/or bill of materials to be used for material preparation or as checklist on the shop floor. The plan view can be printed scale 1:1.

The staircase is designed in three views; Plan view, side view and 3D view. The visualisation in 3D gives a good understanding of what the finished staircase will look like. Surrounding walls, windows and doors can also be visualised. Different design alternatives can easily be presented for the end customer, for example material and finish. The plan view is typically used to design the shape of the stair, floor opening and walls. Dimensioning can be done automatically and/or manually. The side view is typically used to edit the side shape of strings and balustrade.

Staircon Professional plotter

The stairs compliancy to chosen building regulations (headroom, step height etc) is easily tested. Documentation can be generated with project properties as well as scaled drawings of plan-, side and 3D view. Guides with predefined stair shapes are used to quickly draw the most common staircases. Staircon also allows for modification into any shape, giving the user a large range of design possibilities. Floor balustrade, openings and walls can also be created with flexible design. There is no limitation to the number of stairs, floors or stairwells that can be designed in one single project.

Examples of design features:

  • Free shape floor opening and walls
  • Free shape of stair
  • Free shape floor balustrade
  • Glass balustrade
  • Cut top side of steps- antiglide and stone inlay
  • Carpet on step
  • Bent front edge of step
  • Bullnose step
  • Space saving stair
  • String and handrail with radius (arc)
  • Round post
  • Z-riser
  • Bolzen staircases
  • Winderbox stairs
  • Spiral stairs
  • Round stairs





Software overview

Staircon design and 3D example

Design and 3D

Bullnose step, string with radius, step with radius front, and round post.

Staircon arc strings in multiple floors

Design and 3D

Arc strings in multiple floors.


Staircon elevation view

Design and 3D

Elevation view where editing can be made, the result is instantly displayed in 3D.

Staircon bolzen stair example

Design and 3D

Bolzen stair (no strings), antislip on step and glass balustrade with clamps.


Staircon top view

Design and 3D

Top view where shape of stair, floor balustrade, walls and opening can be edited. The result is instantly displayed in 3D.

Staircon Z-risers

Design and 3D

Z-risers and bolt in step for glass board.


Staircon space saving stair

Design and 3D

Space saving stair.

Staircon standard UK/US stair

Design and 3D

Standard UK/US stair with winderbox.

Movies

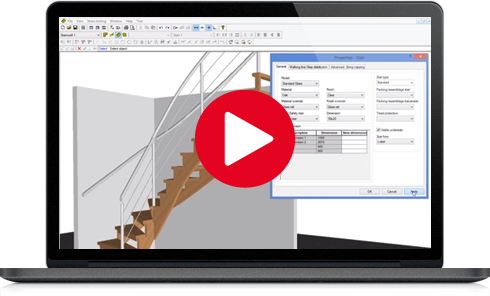

Staircon Professional demonstration video

Staircon Professional

Staircon Professional offers efficient and well-coordinated work preparation for manufacturers using full-scale print-outs. View demonstration video showing design views, 3D view, examples of stair models and editing the project.
